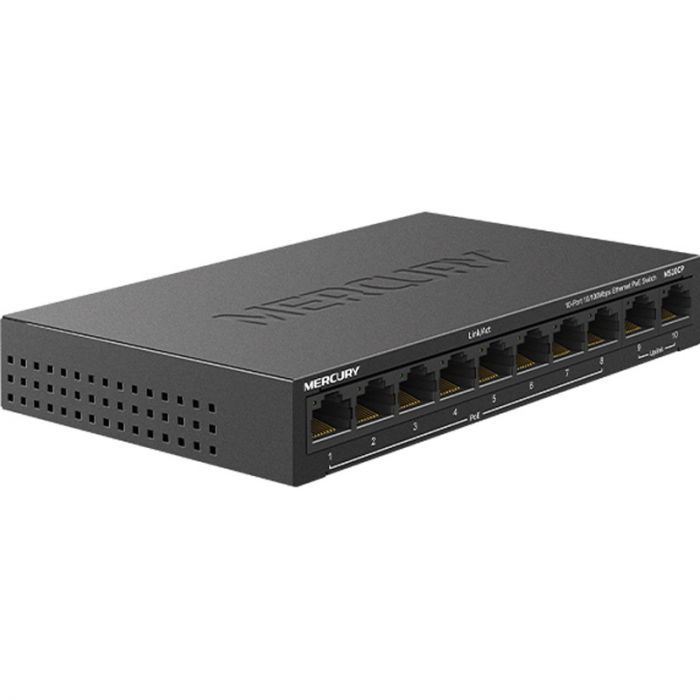

Mercury 10-port Monitoring Standard POE Power supply 48V (100mbps) Switch

In stock
SKU
MS10CPS
₹2,400.00 ₹2,033.90
Quick Overview

Provides 10 10/100M adaptive RJ45 ports, including 8 PoE ports and 2 Uplink ports
Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control
Power output power can reach 65W, single-port PoE power can reach 15.4W
Provides ultra-distance mode switch, after turning on, 1~8 ports work at 10Mbps rate, and can transmit up to 260 meters.
Each port supports MDI/MDIX automatic flipping and auto-negotiation
Compatible with IEEE 802.3af standard, automatically detects and identifies IEEE 802.3af-compliant powered devices (PD) and supplies power to them
Plug-and-play, no configuration required, simple and convenient



Web Standards
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x
port
  • 10 10/100Mbps RJ45 ports, of which ports 1-8 support PoE function, 2 Uplink ports
Indicator Lights
  • Each device has a Power indicator light
  • Each port has a Link/Act indicator
Network media
  • 10BASE-T: Category 3, 4, 5 unshielded twisted pair (≤ 100 meters)
  • 100BASE-TX: Category 5 or above unshielded twisted pair (≤ 100 meters)
Mode switch
  • An ultra-distance mode switch, when turned on, ports 1 to 8 work at a rate of 10Mbps and can transmit up to 260 meters.
performance
  • Store and Forward
  • Support 2K MAC address table depth
Usage Environment
  • Working temperature: 0℃~40℃
  • Storage temperature: -40℃~70℃
  • Working humidity: 10%~90% RH non-condensing
  • Storage humidity: 5%~90% RH non-condensing
Input Power
  • 53.5VDC 1.22A
Dimensions (L*W*H)
  • 158mm*100mm*25mm
