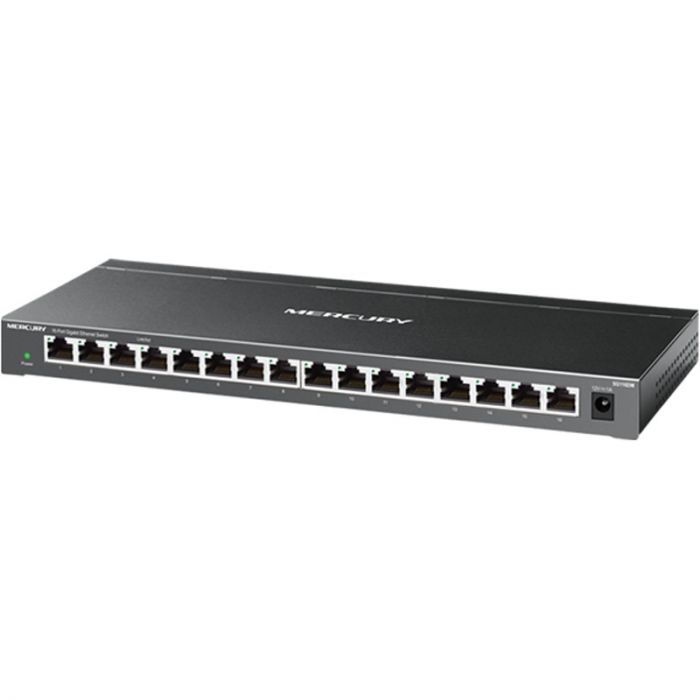

Mercury 16 Channel Gigabit Port Desktop & Monitoring Port Switch
In stock
SKU
SG116DM
₹5,300.00 ₹4,491.53
Quick Overview
- Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab protocol standards
- 16 RJ45 interfaces
- 10/100/1000M rate adaptation
- Provides three working modes: standard switching, VLAN isolation, and network cloning
- After turning on the VLAN mode switch, ports 1~14 are isolated from each other and can only communicate with ports 15 and 16
- Support port automatic flipping (Auto MDI/MDIX)
- Support IEEE802.3x full-duplex flow control and back pressure half-duplex flow control
- Dynamic LED indicator, providing simple working status prompts and troubleshooting
- Support MAC address self-learning function
- Desktop steel shell design, exquisite and beautiful, efficient heat dissipation
Web Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x | |
protocol | CSMA/CD | |
port | 16 10/100/1000M adaptive network ports | |
Supported network cable types | 10Base-T: Category 3 or above UTP 100Base-TX: Category 5 UTP 1000Base-T: Category 5e and above UTP | |
Indicator Lights | Power and status indicator lights | |
Dimensions (L x W x H)
| 286mm x 112mm x 25mm | |
Exchange method | Store-and-Forward, wire-speed filtering and forwarding | |
power supply | External power adapter | |
Filtering and forwarding rate | 10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps | |
Usage Environment | Working temperature: 0℃ to 40℃ Storage temperature: -40℃ to 70℃ Operating humidity: 10% to 90% RH non-condensing Storage humidity: 5% to 90% RH non-condensing | |
