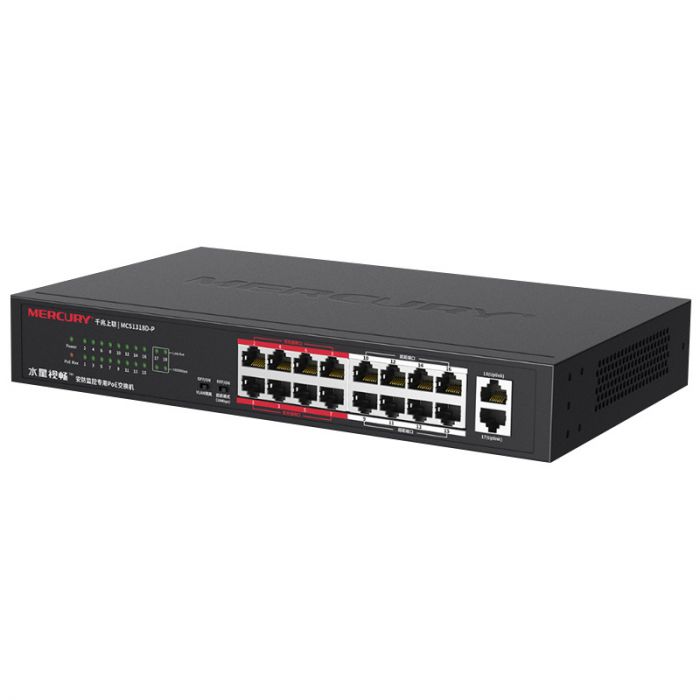

Mercury 16-Port POE 48V Power supply 100M LAN Ports with Gigabit Uplink Monitoring POE Switch
- It provides 16 10/100M adaptive RJ45 ports and 2 10/100/1000M adaptive RJ45 ports, of which ports 1-16 are PoE ports and the Gigabit Ethernet port is the uplink port.
- tt provides an ultra-distance mode switch.
- it provides 8 ultra-distance ports, and the ultra-distance port can transmit up to 260m after the ultra-distance mode is turned on.
- It supports IEEE 802.3af/at standards, automatically detects and identifies powered devices (PDs) that comply with the IEEE 802.3af/at standards and supplies power to them.
- The power output power is 128W, and the single-port PoE power can reach 30W;
intelligent power management, if the power of the powered device exceeds the limit, the system starts the PoE port priority mechanism and cuts off the power supply of the port with low priority. - Each port supports MDI/MDIX automatic flipping and auto-negotiation;
it supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control. - It can be mounted on a rack.
- Plug and play, no configuration required, simple and convenient.
| Web Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at | |
| port | 16 10/100Mbps RJ45 ports, support PoE function 2 10/100/1000Mbps RJ45 ports, Uplink port | |
| Indicator Lights | Each 100M port has a Link/Act indicator Each Gigabit port has a Link/Act and 1000M indicator light Each device has 1 Power and PoE Max indicator light | |
| Network media | 10BASE-T: Category 3, 4, 5 unshielded twisted pair 100BASE-TX: Category 5 and above unshielded twisted pair 1000BASE-T: Category 5e and above unshielded twisted pair | |
| Mode switch | Ultra-distance mode switch: When turned on, ports 9 to 16 work at a rate of 10Mbps, and the maximum transmission distance is 260m | |
| performance | Store and Forward Support 16K MAC address table depth | |
| Usage Environment | Working temperature: 0℃～40℃ Storage temperature: -40℃～70℃ Working humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing | |
| power supply | Built-in power supply, maximum output power 128W | |
| Dimensions (L*W*H) | 294mm*180mm*44mm | |
