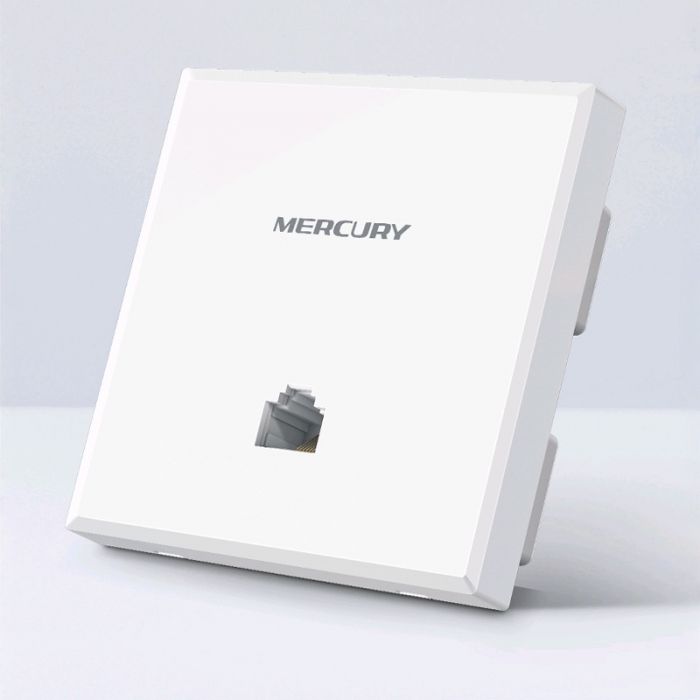

Mercury BE3600 Dual-band Wi-Fi 7 Wireless Panel AP (2.5G Port)

Be the first to review this product

In stock

SKU

MI7AP3600HP

₹13,500.00 ₹11,440.68

Buy 6 for ₹12,150.00 ₹10,296.61 each and save 10%
Buy 12 for ₹11,475.00 ₹9,724.58 each and save 15%

Quick Overview

WIFI 7 INTRODUCTION

IEEE 802.11be (Wi-Fi 7) is a wireless networking standard that offers faster speeds and higher capacity than previous Wi-Fi standards. It's also known as Extremely High Throughput (EHT).

Key features

Channel width: Up to 320 MHz, double the width of Wi-Fi 6
Modulation scheme: Up to 4096QAM
Data throughput: Over 30 Gbps
Low latency: Supports applications like AR, VR, and high-definition video streaming
Multi-Link Operation (MLO): Supports coordinated operations across multiple links
Wi-Fi 7 Multi Link Single Radio (MLSR): Switches between channels to improve reliability and reduce latency

PRODUCT FEATURES

11BE wireless technology, 2.4G/5G dual-band concurrent, support MLO, wireless rate up to 3570Mbps
Slim shell, the thickness of the wall is only 10mm
802.3at standard PoE cable power supply, no external power supply required
Spectrum navigation guides dual-band clients to connect to the 5GHz band first, making the load on the two bands more balanced
FIT mode supports automatic RF tuning and manual adjustment of transmit power
FIT mode supports smart roaming
Support weak signal rejection and prohibition of weak signal device access
Fat and thin in one, different modes can be selected according to different application environments
Support Mesh networking
Supports Mercury commercial network cloud platform management

Protocols and standards	IEEE 802.11a/b/g/n/ac/ax/be wireless protocols
Wireless rate	Maximum wireless rate 3570Mbps (2.4GHz 688Mbps, 5GHz 2882Mbps)
Network port	2 10/100/1000Mbps RJ45 network ports (rear panel network ports support PoEtry power supply)
Button	FIT/FAT switch button, Reset button
antenna	3 built-in omnidirectional antennas
Operating frequency	2.4 ~ 2.4835GHz 5.150~5.250GHz 5.250~5.350GHz 5.725~5.850GHz
Network media	10Base-T: Category 3 or above UTP 100Base-TX: Category 5 UTP 1000Base-TX: Category 5e or above UTP
LED Indication	1 system indicator light
Product size	86mm×86mm×45.4mm
Usage Environment	Working temperature: 0℃ to 40℃ Storage temperature: -40℃ to 70℃ Operating humidity: 10% to 90% RH non-condensing Storage humidity: 5% to 90% RH non-condensing
Power consumption	Standard PoE power supply PoE power supply maximum power consumption 14.7W PoE power supply typical power consumption 7.87W PoE power supply standby power consumption 4.8W
Installation	Directly installed in the national standard 86 network wiring dark box

11BE wireless technology, 2.4G/5G dual-band concurrent, support MLO, wireless rate up to 3570Mbps

Slim shell, the thickness of the wall is only 10mm

Support spectrum navigation, automatic RF tuning and intelligent roaming
Support thin (FIT) AP mode, AP is completely zero-configuration, and the AC wireless controller automatically identifies association and uniformly configures
Support fat (FAT) AP mode, which can manage and configure APs separately to reduce networking costs
Support 802.3af/at standard PoE power supply, no external power supply is required, reducing the difficulty of AP deployment
Full Gigabit wired port to meet the needs of high-speed wired transmission
Support up to 16 SSIDs, which can easily divide multiple wireless networks according to different needs
Support MAC address whitelist function to easily prevent illegal users from accessing
Support internal isolation of AP to ensure the data security of each user
Support wireless network and Tag VLAN binding to achieve further isolation between different wireless networks and ensure network security
86-type panel design, which can be directly installed in the national standard 86-type network wiring dark box
Support unified management of Mercury commercial network cloud platform
Support Mesh networking, which can provide wireless access for MERCURY Mesh devices

Mercury BE3600 Dual-band Wi-Fi 7 Wireless Panel AP (2.5G Port)
