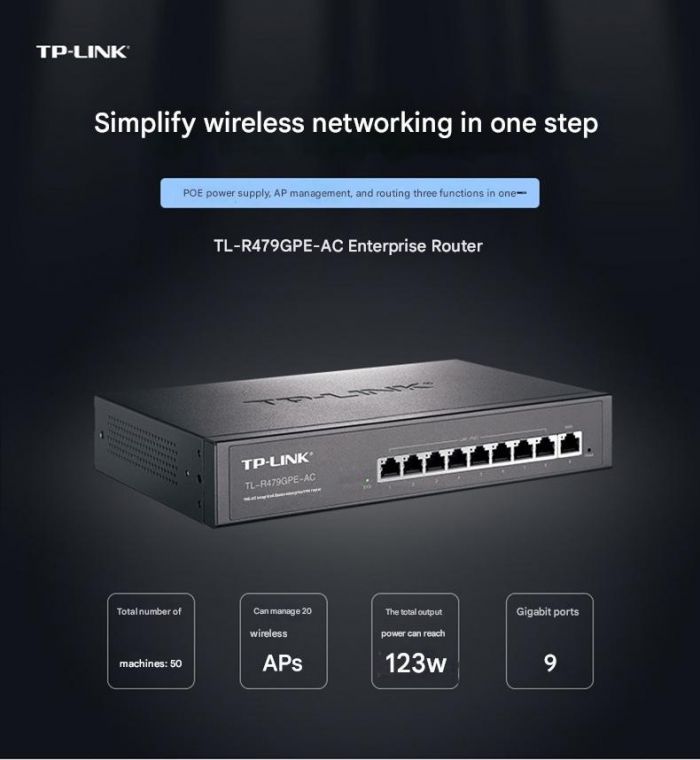

TP-LINK 9 Port 3 in 1 AC Gigabit Wired PoE 77W Power Supply AC Management Router

• 9 Gigabit Ethernet ports, 1WAN+8LAN
• Built-in wireless controller, can manage TP-LINK AP products in a unified manner
• All LAN ports support standard PoE power supply, and the output power of the whole machine is up to 120W
• IPSec/PPTP/L2TP VPN, remote communication is more secure
• Access authentication (Web authentication, SMS authentication, PPPoE server)
• Online behavior management (mobile APP control/desktop application control/website filtering/webpage security)

Hardware specifications

Software Features

Tp Link AC switch is a PoE·AC integrated router product developed by TP-LINK specifically for small and micro enterprises, offices, villas and other environments. It has built-in AC (wireless controller) and standard PoE (Power over Ethernet) functions, which can uniformly manage TP-LINK AP products and power them. Users do not need to purchase additional AC and PoE devices, and can directly use TP-LINK AP products to build a wireless network. It is easy to manage and cost-effective.

It adopts an enterprise-level Gigabit hardware platform, provides 9 Gigabit network ports, and also supports rich software functions such as Web authentication, IPSec/PPTP/L2TP VPN, Internet behavior management, PPPoE server, firewall, and intelligent bandwidth control.

Built-in AC+PoE function simplifies wireless networking in small and micro enterprises/villa environments

Built-in AC (wireless controller) function, which is both a router and a wireless controller, can manage up to 50 TP-LINK AP products in a unified manner to build a wireless network;

It can automatically discover TP-LINK APs in the network and uniformly configure and manage APs, achieving zero-configuration access and plug-and-play. It also supports AP status monitoring, AP upgrades, and scheduled restarts for easy maintenance .

All LAN ports support standard PoE power supply, in compliance with IEEE802.3af/at standards, with a maximum output power of 30W per port and a maximum output power of 120W for the entire device;

It is suitable for building wireless networks in small businesses, offices, villas and other environments. There is no need to purchase additional AC and PoE switches. It is simple to deploy and maintain and has a high cost-effectiveness.

Multiple VPNs to ensure remote secure communications

Support IPSec VPN to encrypt confidential data of enterprises and branches and ensure data security;

Supports PPTP VPN and L2TP VPN server/client modes, making it easy for employees on business trips and mobile office workers to remotely access the company's internal servers and realize remote office work easily;

Manage online behavior and regulate employee network usage

Built-in common Internet application database, which can control various desktop and mobile Internet applications with one click, including social software/video software/music software/shopping and leisure software/news information software/P2P software/financial software/online games/application stores/basic applications and other categories;

Built-in database of dozens of categories and hundreds of URLs, which can restrict employees' access to corresponding websites with one click;

It supports filtering file extension types, which can easily filter various small files embedded in web pages to prevent viruses, Trojans, etc. from invading the enterprise network through these small files and endangering network security.

Multiple authentication methods, control Internet access permissions, and implement advertising marketing

Supports Web authentication, and can push merchant advertising information through the authentication page;

Support SMS authentication, meet real-name authentication requirements, and conduct secondary marketing based on mobile phone numbers;

Supports PPPoE server, enabling unified dial-up Internet access for intranet users.

Efficient firewall to ensure the security of internal and external networks

Supports IP and MAC address binding to effectively prevent internal/external ARP spoofing; when ARP spoofing occurs, it can actively send ARP correction information at a specified frequency to restore the network to normal status in time;

Supports internal/external network attack protection function, which can effectively prevent various common DoS attacks, scanning attacks, and suspicious packet attacks;

Supports filtering function based on MAC address to effectively block access of illegal hosts;

Permissions through the router can be assigned to various network services to ensure the security of internal and external networks, support access control rules based on user groups and time periods, and achieve more refined management.

Flexible bandwidth control to ensure reasonable bandwidth utilization

Supports flexible bandwidth control strategies based on bandwidth utilization, and can perform bidirectional bandwidth control for each host (IP) in the network, effectively suppressing excessive bandwidth usage by P2P applications such as BT and Xunlei, and ensuring smooth network operation at all times;

It provides IP-based connection limit function, which can limit the number of connections occupied by each computer, prevent a small number of users from excessively occupying a large number of connections, and ensure smooth gaming, Internet access, chatting, video and voice, etc.

More practical functions

Support dynamic IP and static IP access technology;

Internal/external network two-way port monitoring to meet the data monitoring needs of relevant departments;

Support DDNS and virtual server functions, easily build intranet servers and private websites;

Support UPnP and ALG service functions to ensure that special network applications can successfully penetrate NAT;

Fully Chinese WEB management interface, management and maintenance are more convenient and faster;

Supports automatic cleaning function, which can automatically clean up the device cache when the network is idle to improve device stability;

Provides log list function to record network operation status in detail;

Supports multiple fault detection tools such as Ping and Tracert to help quickly discover and eliminate network faults.
