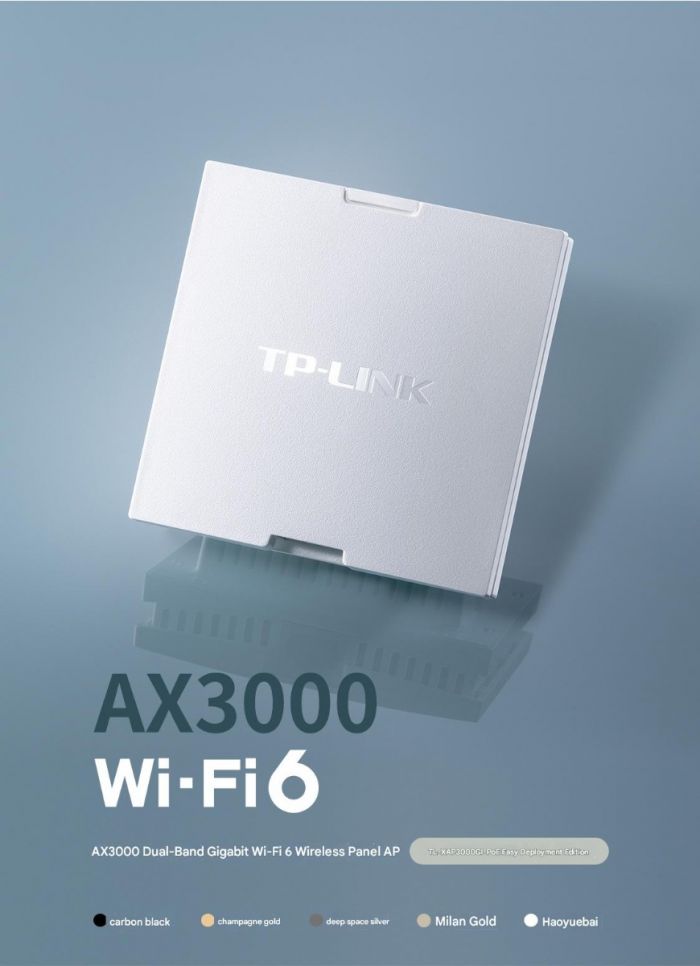

AX3000 Dual-Band Gigabit Wi-Fi 6 Wireless Panel AP
Next-generation Wi-Fi 6 (802.11ax) technology
11AX 2.4G/5G dual-band concurrent, wireless rate up to 2976Mbps
National standard 86 housing, elegant appearance
802.3af/at standard PoE cable power supply, no external power supply required
Supports TP-LINK Easy Extension function. Simply press a button to enable wireless access to TP-LINK Easy Extension devices
Spectrum navigation guides dual-band users to connect to the 5GHz band first, balancing the load between the 2.4GHz and 5GHz bands to ensure network performance
FIT mode supports automatic RF tuning
FIT mode supports smart roaming
Supports the function of removing weak signal devices and prohibiting weak signal devices from accessing
Fat and thin in one, different modes can be selected according to different application environments
Supports centralized management of TP-LINK commercial network cloud platform
Support TP-LINK Business Cloud APP remote viewing/management
Hardware specifications
Installation
Directly installed in the national standard 86 network wiring dark box
size
86*86*55mm
Wireless rate
2.4GHz: 574Mbps
5GHz: 2402Mbps
port
Front bottom: 1 10/100M/1000M RJ45 port
Back: 1 10/100M/1000M RJ45 port
antenna
Internal antenna
Indicator Lights
1 system indicator light
Button
1 FAT/FIT mode toggle switch
1 Reset button
1 easy-to-expand button
power supply
Standard PoE power supply
Power consumption
PoE power supply maximum power consumption 12.5W
PoE power supply standby power consumption 4W
manage
FIT AP mode: managed by TP-LINK wireless controller (AC)
FAT AP mode: independent web page management
Usage Environment
Working temperature: 0℃～40℃
Working humidity: 10%～90%RH non-condensing
Storage temperature: -40℃～70℃
Storage humidity: 5%~90%RH non-condensing
Software Specifications (FAT AP Mode)
Wireless Capabilities
SSID broadcast: support
Number of SSIDs: 8 (2.4G) + 8 (5G) (supports Chinese SSID)
