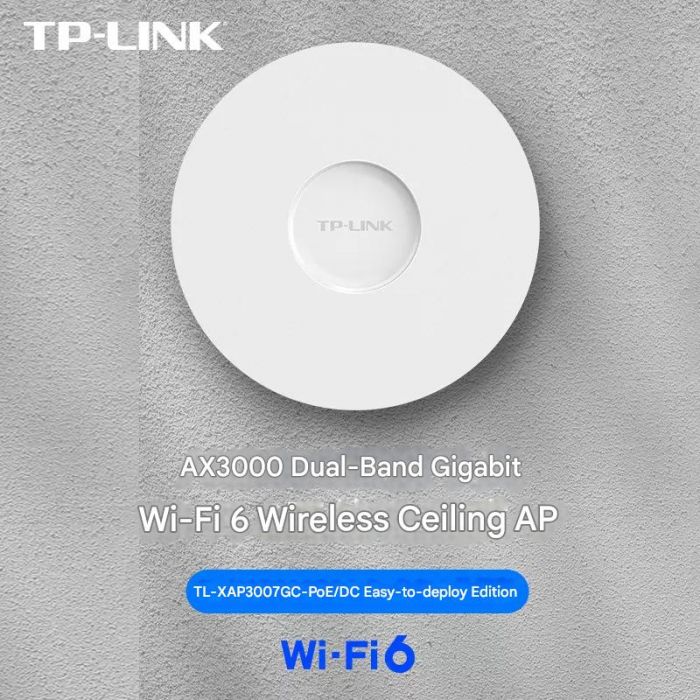

AX3000 Dual-Band Gigabit Wi-Fi 6 Wireless Ceiling AP
11AX (Wi-Fi 6) dual-band concurrent, the maximum wireless rate can reach 2976Mbps
Supports easy-to-expose MESH networking, sub-nodes without wiring, and coverage of blind spot signals is more convenient
Wireless transmission power is linearly adjustable, and the signal coverage range can be adjusted according to needs
Professional dual-band antenna to improve signal quality in the coverage area
Spectrum navigation guides dual-band clients to connect to the 5GHz band first, making the load of the 2.4GHz and 5GHz bands more balanced and ensuring network performance
Simple ceiling installation, 802.3at standard PoE network cable power supply
Port hidden housing, beautiful wiring
Fat and thin in one, choose different working modes in different environments
Independent hardware protection circuit, can automatically restore abnormal AP
FIT mode supports RF automatic tuning function
FIT mode supports intelligent roaming technology
Supports centralized management of TP-LINK commercial cloud platform
Support TP-LINK Business Cloud APP remote viewing/management
product
name
AX3000 Dual-Band Gigabit Wi-Fi 6 Wireless Ceiling AP
Hardware specifications
Bare machine size (length x width x height)
Φ243×64mm (excluding mounting parts)
Packing size (length x width x height)
306×304×85mm
Bare Metal Weight
0.56kg (single unit, excluding accessories and packaging)
Total weight
0.98kg (single unit, including accessories and packaging)
interface
1 10/100/1000Mbps auto-sensing Ethernet port
1 DC power interface
Indicator Lights
1 system indicator light
Button
1 RESET button
1 easy-to-expand button
1 FAT/FIT mode toggle switch
power supply
IEEE 802.3at standard PoE power supply
DC power supply: 12V
Note: This product does not include a power adapter. If you need to use DC power supply, please purchase a 12VDC 2A output power adapter and a 5.5mm*2.1mm DC power connector.
