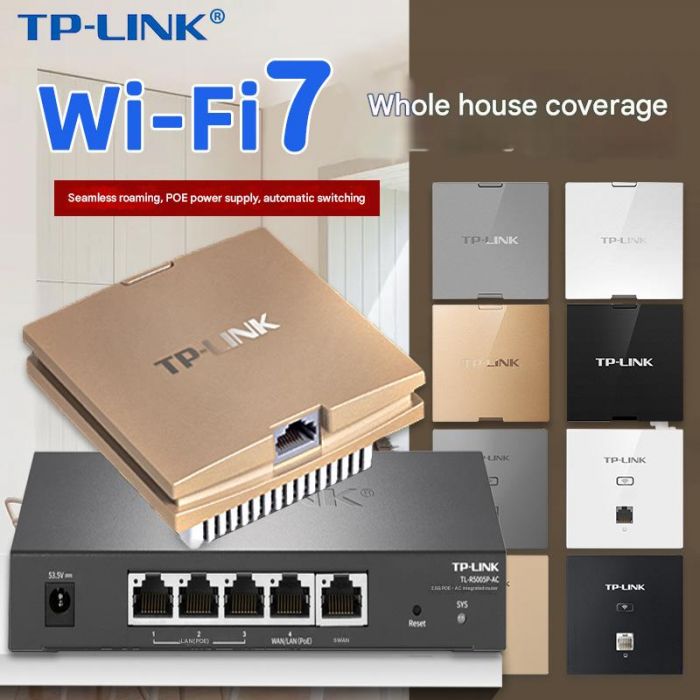

- Tp-Link WIFI7 5000mbps Wireless Network Speed with wired 2.5G (2500mbps) Port Dual Band 2.4Ghz & 5Ghz Wall Access Point
Tp-Link WIFI7 5000mbps Wireless Network Speed with wired 2.5G (2500mbps) Port Dual Band 2.4Ghz & 5Ghz Wall Access Point
- Buy 5 for ₹13,275.00 ₹11,250.00 each and save 10%
- Buy 25 for ₹11,800.00 ₹10,000.00 each and save 20%
Quick Overview Hardware specifications
| Installation | - Directly installed in the national standard 86 network wiring dark box
|
| size | |
| Wireless rate | - 2.4GHz: 689Mbps
- 5GHz: 4323Mbps
|
| port | - Front bottom: 1 10/100M/1000M RJ45 port
- Back: 1 10/100M/1000/2500M RJ45 port
|
| antenna | |
| Indicator Lights | |
| Button | - 1 FAT/FIT mode toggle switch
- 1 Reset button
- 1 easy-to-expand button
|
| power supply | - Standard PoE power supply
|
| Power consumption | - PoE power supply maximum power consumption 14.7W
- PoE power supply standby power consumption 4.8W
|
| manage | - FIT AP mode: managed by TP-LINK wireless controller (AC)
- FAT AP mode: independent web page management
|
| Usage Environment | - Working temperature: 0℃～40℃
- Working humidity: 10%～90%RH non-condensing
- Storage temperature: -40℃～70℃
- Storage humidity: 5%~90%RH non-condensing
|
Software Specifications (FAT AP Mode)
| Wireless Capabilities | - SSID broadcast: support
- Number of SSIDs: 8 (2.4G) + 8 (5G) (supports Chinese SSID)
- Network type: guest network, employee network
- Wireless encryption: WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK
- User isolation: isolation between wireless networks and isolation within APs
- Wireless MAC address filtering: support whitelist
- VLAN settings: support SSID and Tag VLAN binding
- Transmit power setting: support 1dBm linear adjustment
- WDS function: support
- Wireless client quantity limit: Supported
- QoS: WMM
- Prohibit weak signal devices from accessing: Support
- Eliminate weak signal devices: Support
- Support automatic RF tuning
- Support smart roaming
|
| | |
| System Management | - Equipment management: full Chinese WEB management
- System log: support
- Restore factory settings: Support
- Backup configuration: Supported
- Import configuration: Supported
- Software upgrade: support
- Ping watchdog: support
|
